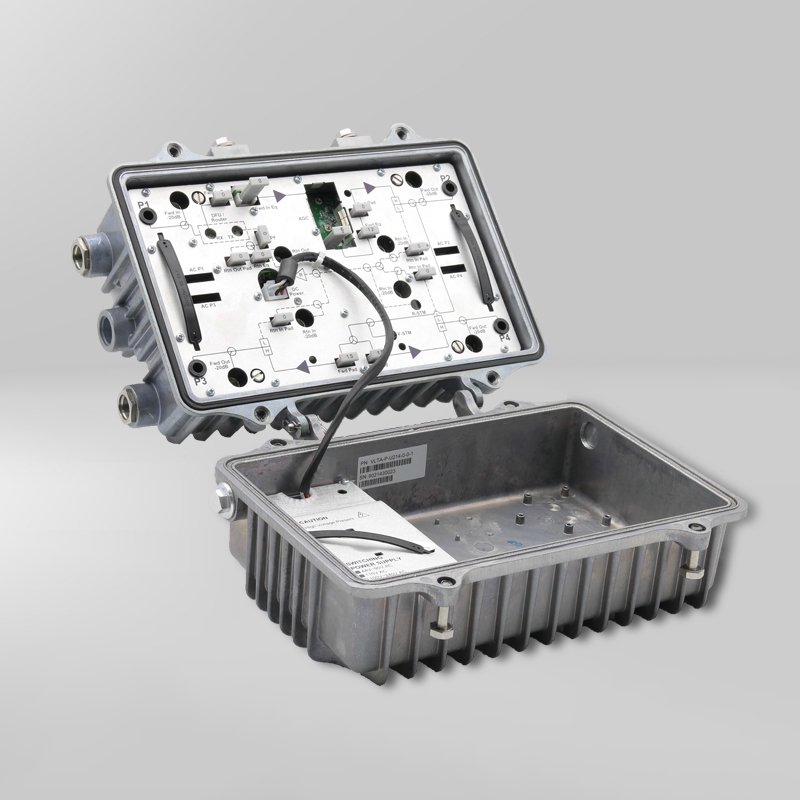

VLTA –P Trunk Amplifier for Unbalance

The VLTA Trunk Amplifier for Unbalance family includes a variety of gain, output, and frequency configurations, to provide system designer with various choice for the network architectures being deployed. The Amplifier series are economic platform with high performance. There are 3ports active output and can be upgraded to Node. It is also very useful in long-reach applications, or as a terminating bridge in more traditional architectures.

The VLTA Trunk Amplifier for Unbalanceis ideally suited as a trunk / bridge amplifier. It provides one low level RF output for trunk (express) path and two high (bridge) level RF output for the feeder network

Features

  • 1000MHz bandwidth
  • 3 port output level 52dBmV@1000MHz in 78CH NTSC+75CH QAM
  • Low RF input level and high RF output level
  • JXP PAD for level attenuation
  • AGC self-loading gain compensation.
  • Band diplexer selection for 42/54 or 65/85 or 204/258
  • Wide operation temperature range -40~+60 degree C
  • Cable equalizer using JXP PAD for slope adjustment
  • With DC power LED
  • 15A power current passing capability
  • RoHS compliance



Specifications

VLTA –P Trunk Amplifier for Unbalance_Specifications

VLTA –P Trunk Amplifier for Unbalance_Specifications

Note: Unless otherwise noted, specifications reflect typical performance.



Dimensions

VLTA –P Trunk Amplifier for Unbalance_Dimensions



Ordering Information

VLTA –P Trunk Amplifier for Unbalance_Ordering Information
