VL-FRX-02 Forward Receiver

The VL-FRX Forward Path Receiver accepts two optical inputs can be redundancy with a wavelength between 1200 and 1600nm and an optical power input range of –3 to +3dBm. One set RF outputs have a pass-band from 47 to 1003MHz and can be attenuated between -20 and 0dB using the front panel controls.

Specifications

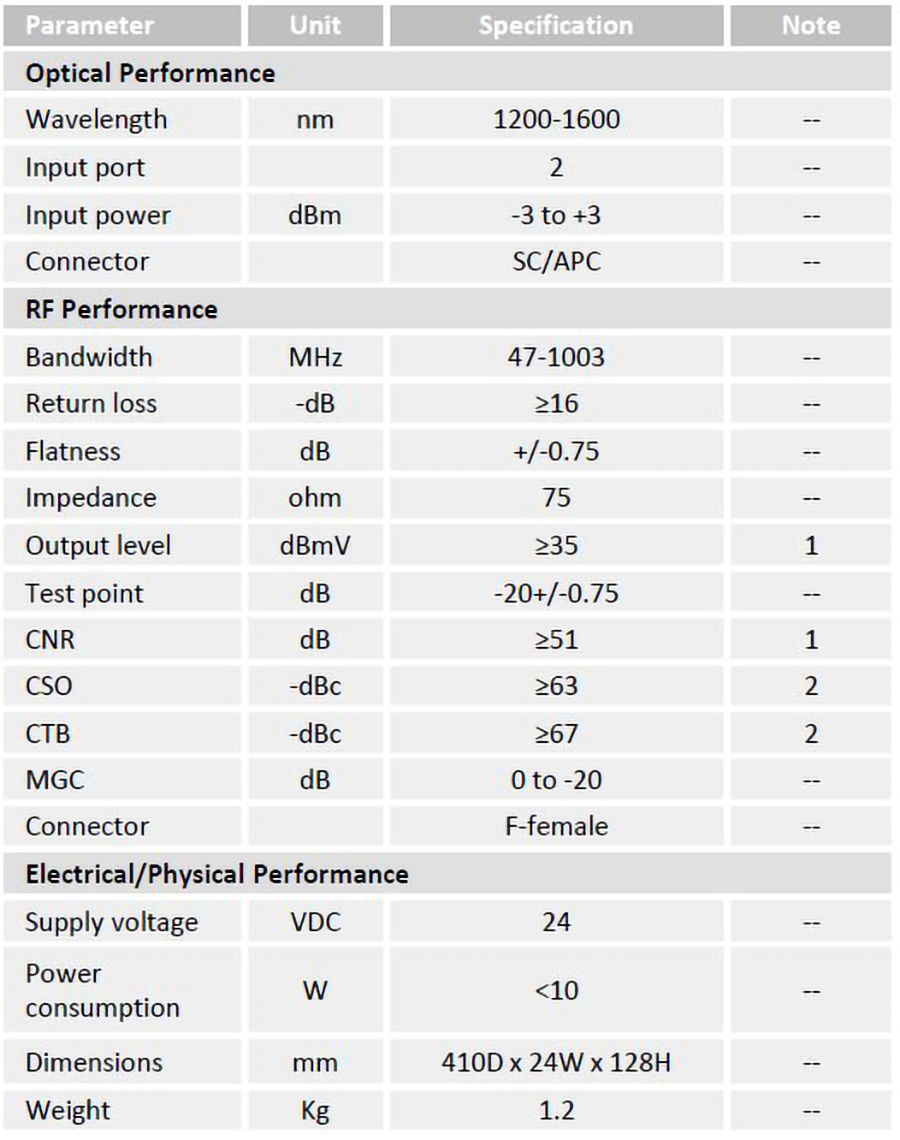

VL-FRX-02 Forward Receiver_Specifications

1.-1dBm optical input,OMI=3.3%,AGC setting
2.35dBmV output, +3dBm optical input,OMI=3.3%, NTSC 77
channels loading



Features

  • Hot swap plug-in module
  • 1200 to 1600nm wavelength
  • –3 to +3dBm optical input range
  • 47 to 1003MHz RF output pass-band
  • 35dBmV RF output power
  • RF attenuator can adjustable using front panel from -20 to 0dB
  • Two optical inputs can be redundancy



Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to absolute maximum ratings forextended periods can adversely affect device reliability.

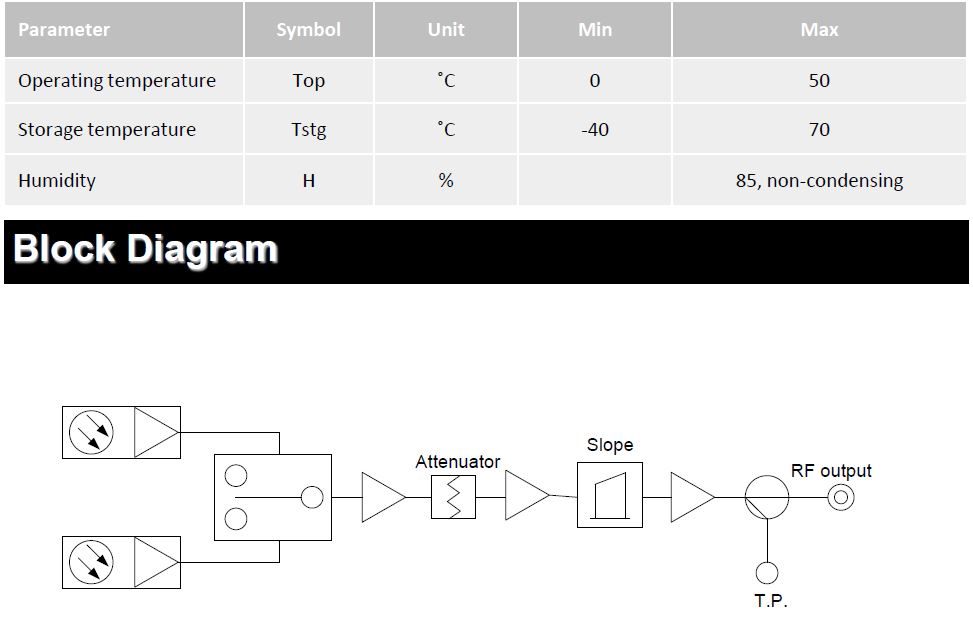

VL-FRX-02 Forward Receiver_Absolute Maximum Ratings



Ordering Information

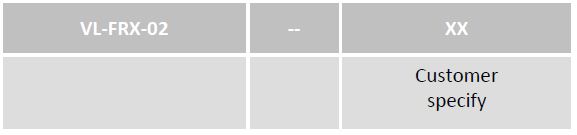

VL-FRX-02 Forward Receiver_Ordering Information
