The VL-EMS-Ⅱ equipment management module has higher
reliability, larger Capacity, serves for more kinds of
communication modules than VL-EMS. It is mounted in the first
slot of the VLink platform to provide local monitoring and
configuration, as well as remote management. The VL-EMS-Ⅱ
module contains the strong function of DHCP Client. It is able to
communicate with the rest of the modules via USB port for local
access or RJ45 Ethernet port for remote access. The VL-EMS-Ⅱ

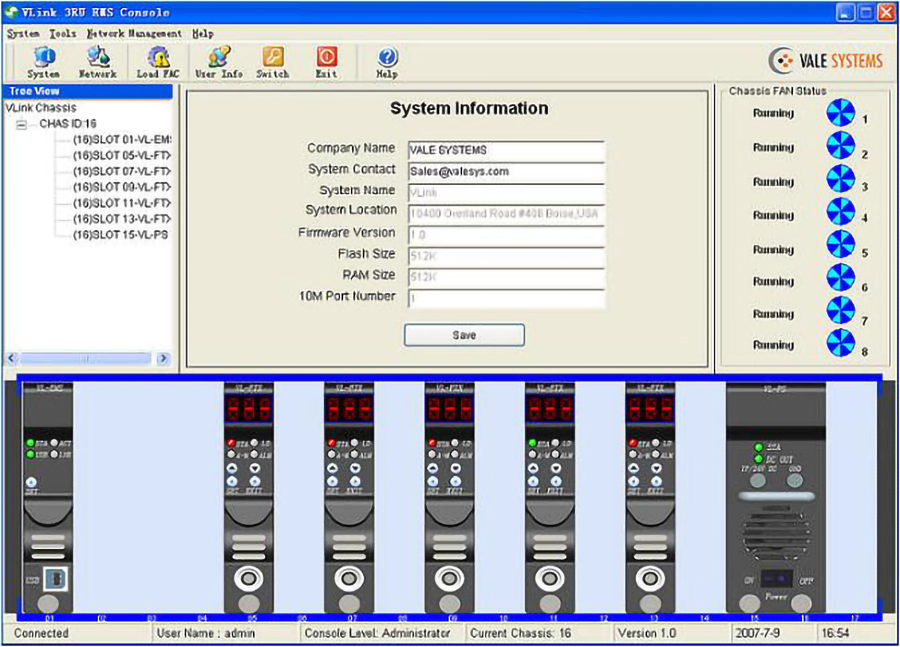

module provides NMCP (Network Management Console Program)
for monitoring and configuration along with a PC compatible
graphical user interface (GUI). The VL-EMS-Ⅱ integrates the
SNMP protocol and the SCTE-HMS-MIBs for remote access via a
standard SNMP agent
