VS1550FAH High Power Optical Amplifier

The VS1550FAH series High Power 1550nm Optical Amplifier is a VLink Light family of high performance 1550nm EDFA Technology Optical Amplifier. VS1550FAH providing 28 dBm ~ 40 dBm output power with built in WDM per each port. It has an option of 4, 8, 16, 32 or 64 outputs to save you space on extra external splitters.

This VS1550FAH can be applied on PON Network and make Triple Play, FTTH easily implemented in your network. To make CATV operators run their system easily, VS1550FAH also designed with an built in Micro computer. It allows engineer to monitor the parameters using front panel switch button or RJ45 interface come with the equipment.

Vlink EDFA has an unique design that makes the light being amplified in an absolute clean and low noise environment.

Specifications

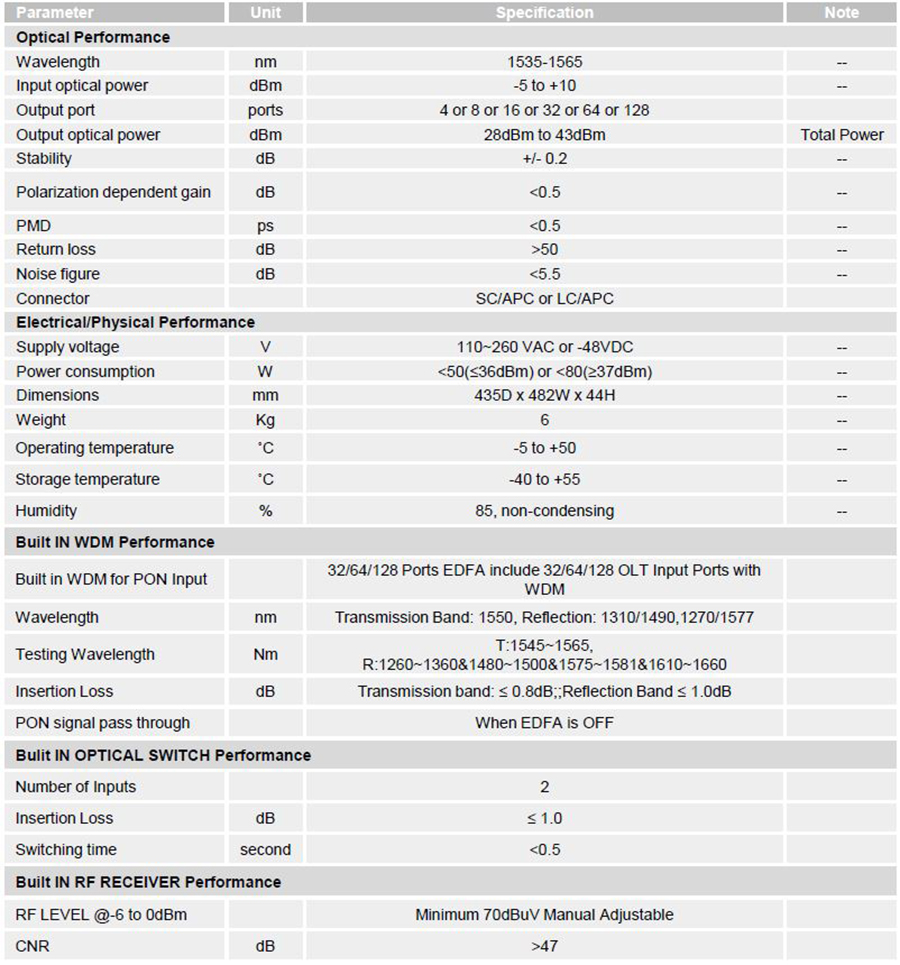

VS1550FAH High Power Optical Amplifier_Specifications



Features

  • YEDFA Technology
  • 28 dBm ~ 43 dBm Output Power
  • 4, 8,16, 32, 64,128 Output Ports
  • Wide Input Optical Power Range
  • Built in WDM per each Port
  • Unique “PUMP” Heat Dissipation design
  • Special design iron box cooling down and Protecting Laser/Pump
  • Modular Fans with superior ventilation design for perfect temperature control
  • Modular Power Supply
  • Noise figure <5.5dB
  • Front Panel Switch allow easy Status Monitoring and configuration
  • RJ45, SNMP Interface
  • LCD Display shows Status and Alarm



Ordering Information

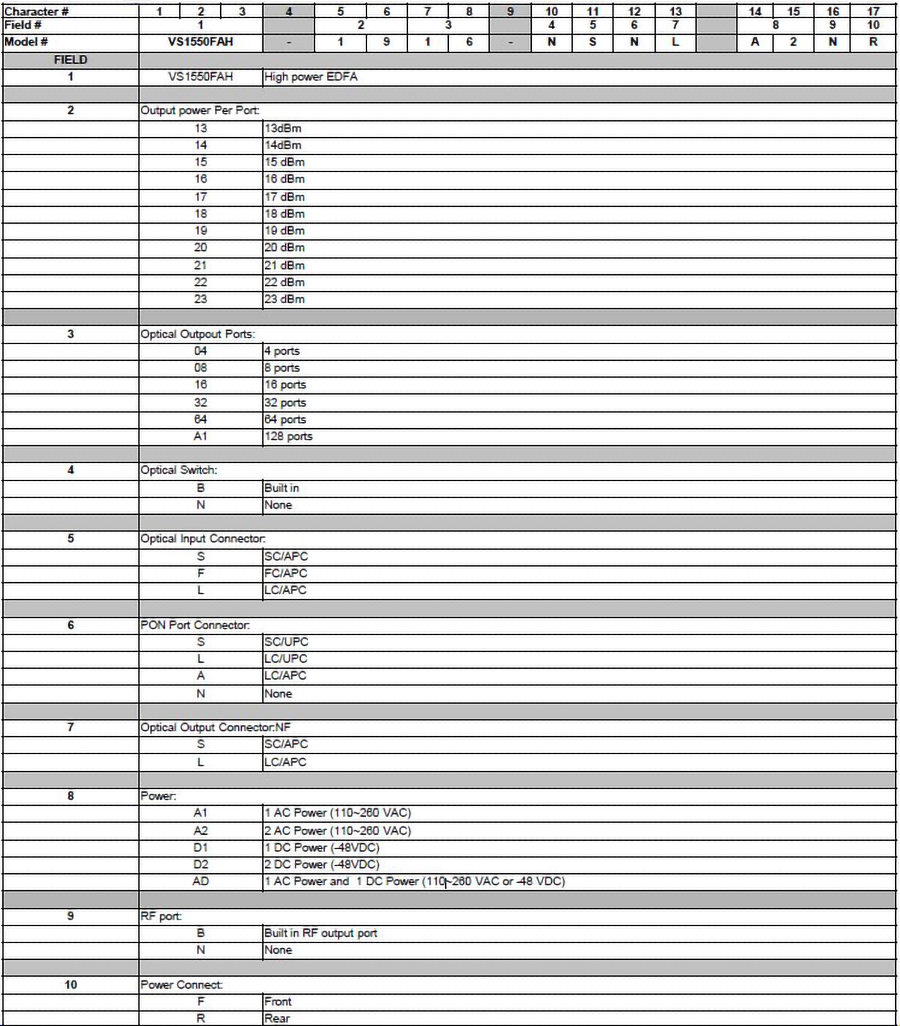

VS1550FAH High Power Optical Amplifier_Ordering Information



Schematic

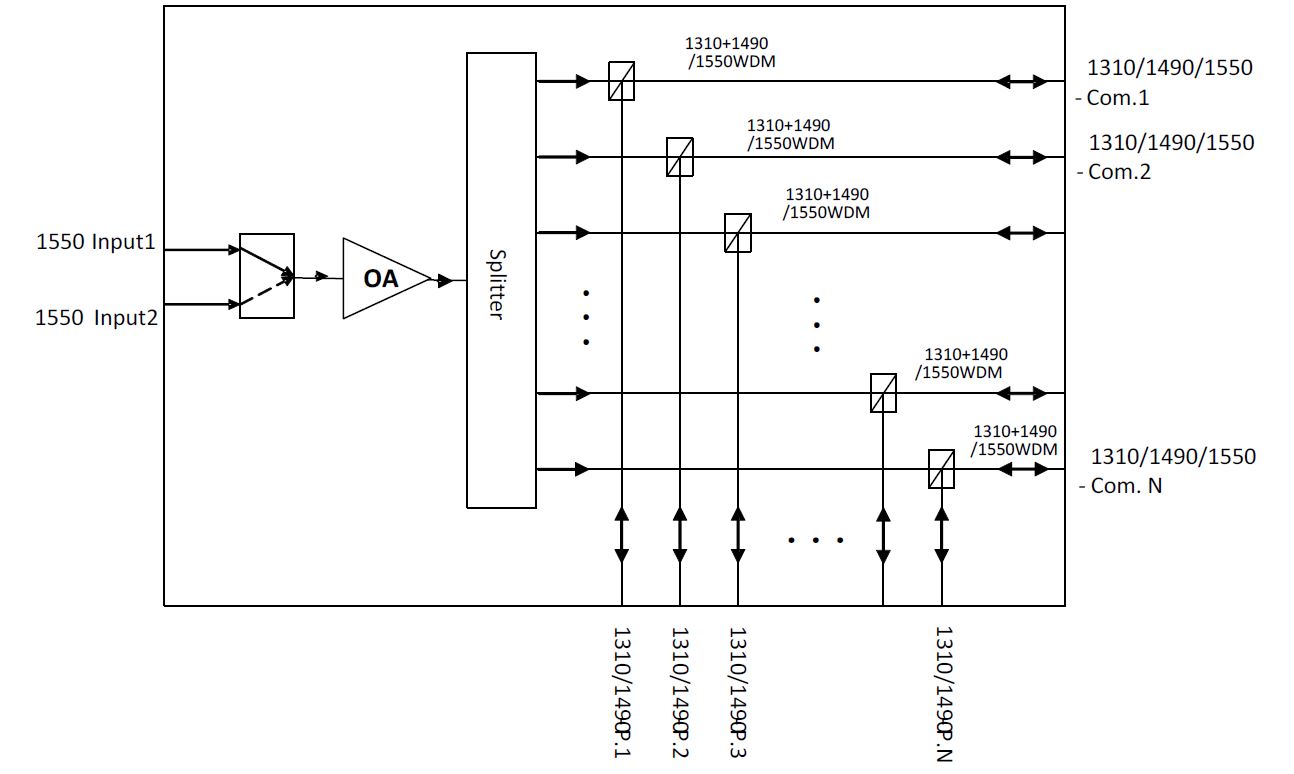

VS1550FAH High Power Optical Amplifier_Schematic
